Goods Lift :

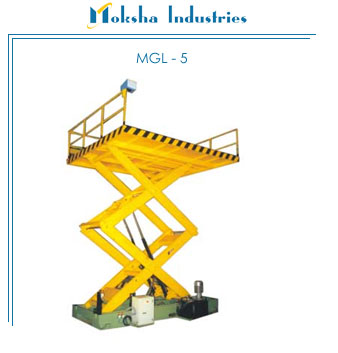

GOODS LIFT- Model - MGL - 5
Capacity: 500 kg
Goods Lift

GOODS LIFTS (SCISSOR TYPE)
Model Capacity
(Kgs)
Platform
Size (mm)
L X B
Vertical
Travel (mm)
B = C - A
Min (Lowered)
height (mm)
A
Max height
(mm)
C
SINGLE 2000 5000 X 2900 3000 1000 4000
SINGLE 1000 5400 X 2500 3200 600 3800
DOUBLE 2000 2040 X 780 2500 600 3100
DOUBLE 1000 3300 X 2700 3960 650 4610
DOUBLE 1000 4000 X 2750 3200 1000 4200
TRIPLE 2000 2900 X 2000 3800 1200 5000
TRIPLE 1000 2200 X 1500 2700 1000 3700
FOUR 3000 2600 X 1500 4500 1500 6000
FOUR 7500 1600 X  1200 3650 1050 4700
FIVE 500 3100 X 1200 7750 2250 10000

Goods Lift
Specifications
Type : Mast Type
Capacity : 500 kgs
Max Platform Height (mm) : 3400 mm
Min Platform Height (mm) : 125 mm
Platform Size : 1000 X 1000 mm
Operation : 415 V AC

Model Capacity
(Kgs)
Platform
Size (mm)
L X B
Vertical
Travel (mm)
B = C - A
Min (Lowered)
height (mm)
A
Max height
(mm)
C
  500 1200 X 1200 3800 120 3900
  250 1000 X 1000 3400 100 3500
  2000 1050 X 1200 5040 160 5200
