Home : Material Handling Equipments : Tow Tractor

Tow Tractor :

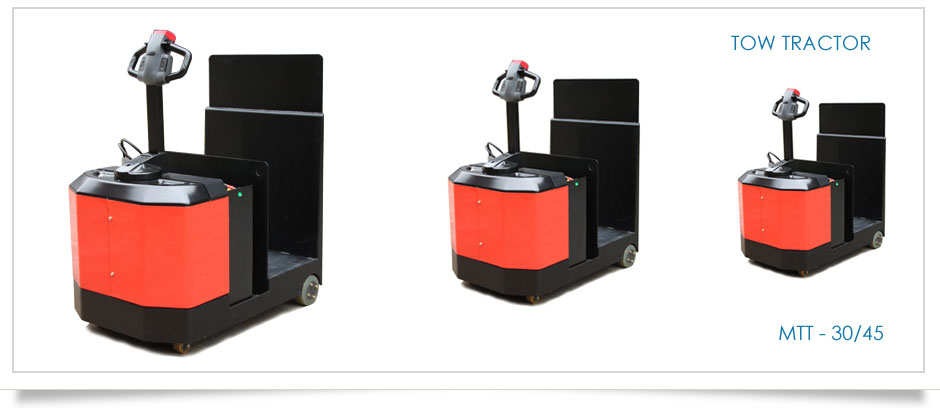

Tow Tractor- Model - MTT- 30/45
Capacity: 3000/4500 kg

This tow tractors is designed to meet the requirements of long and sustained duty cycles. Easy access to driver’s compartment, comfortable driving position, adjustable seat, lower steering efforts and superior driver visibility all contribute to ensure high levels of driver efficiency. A suspension on front steering wheels is available as an option in the event of towing operation on asphalted roads. Engineering Excellence Unmatched traction & braking performance Unique axle design Simple and efficient drive mechanism with helical gear train Dual steering wheel mounted on precision sealed ball bearings to minimise floor friction and tyre wear, assuring maximum foot print SEPEX drive motor controlled by an advanced electronic MOSFET based speed controller

Material Handing Equipments: Pallet Truck Scissor Pallet Truck Manual Stacker Semi Electric Stacker Drum Stacker Fully Electric Stacker Order Picker Truck Electric Pallet Truck Tow Tractor Electric Reach Truck Hydraulic Floor Cranes

Characteristics 1.1 Manufacturer MI MI MI 1.2 Model designation MTT 30 MTT 45 MTT 45 1.3 Drive unit Battery Battery Battery 1.4 Operator type Rider seated Rider seated Rider seated 1.5 Load capacity Q (kg) 3000 4500 4500 1.7 Rated drawbar pull F (N) 600 900 900  Weights 2.1 Service weight kg 700 800 810  Wheels, Chassis 3.1 Tyre type Pneumatic Pneumatic Pneumatic 3.5 Wheels, number front/ rear (x=drive wheels) 1x+ 2/2 1x+ 2/2 1x+ 2/2  Dimensions 4.7 Height of overhead guard (cabin) h6 (mm) 1444 1560 1560 4.12 Tow coupling height h10a/b (mm) 188/233/277/322 188/233/277/322 188/233/277/322 4.19 Overall length l1 (mm) 1284 1430 1430 4.21 Overall width b1/ b2 (mm) 850 850 850 4.32 Ground clearance m2 (mm) 90 90 90 4.35 Outer turning radius Wa (mm) 1047 1196 1196  Performance 5.1 Travel speed, laden/ unladen km/ h 5/7 7/12.5 7/12.5 5.5 Drawbar pull, laden/ unladen S2 60 min. N 600 900 900 5.6 Maximum drawbar pull, laden/ unladen S2 5 min. N 1800 2600 2600 5.8 Maximum gradeability, laden/ unladen S2 5 min. % 3/15 3/15 3/15 5.10 Service brake Electromagnetic Electromagnetic Electromagnetic  Drive 6.1 Drive motor rating S2 60 min. kW 1.5 4 4 6.4 Battery voltage/ rated capacity (5h) V/ Ah 24/210 24/280 24/280 6.5 Battery weight kg 200 250 250  Others 8.1 Type of drive control AC   ZAPI AC   ZAPI AC   ZAPI 8.5 Tow coupling PIN PIN PIN
